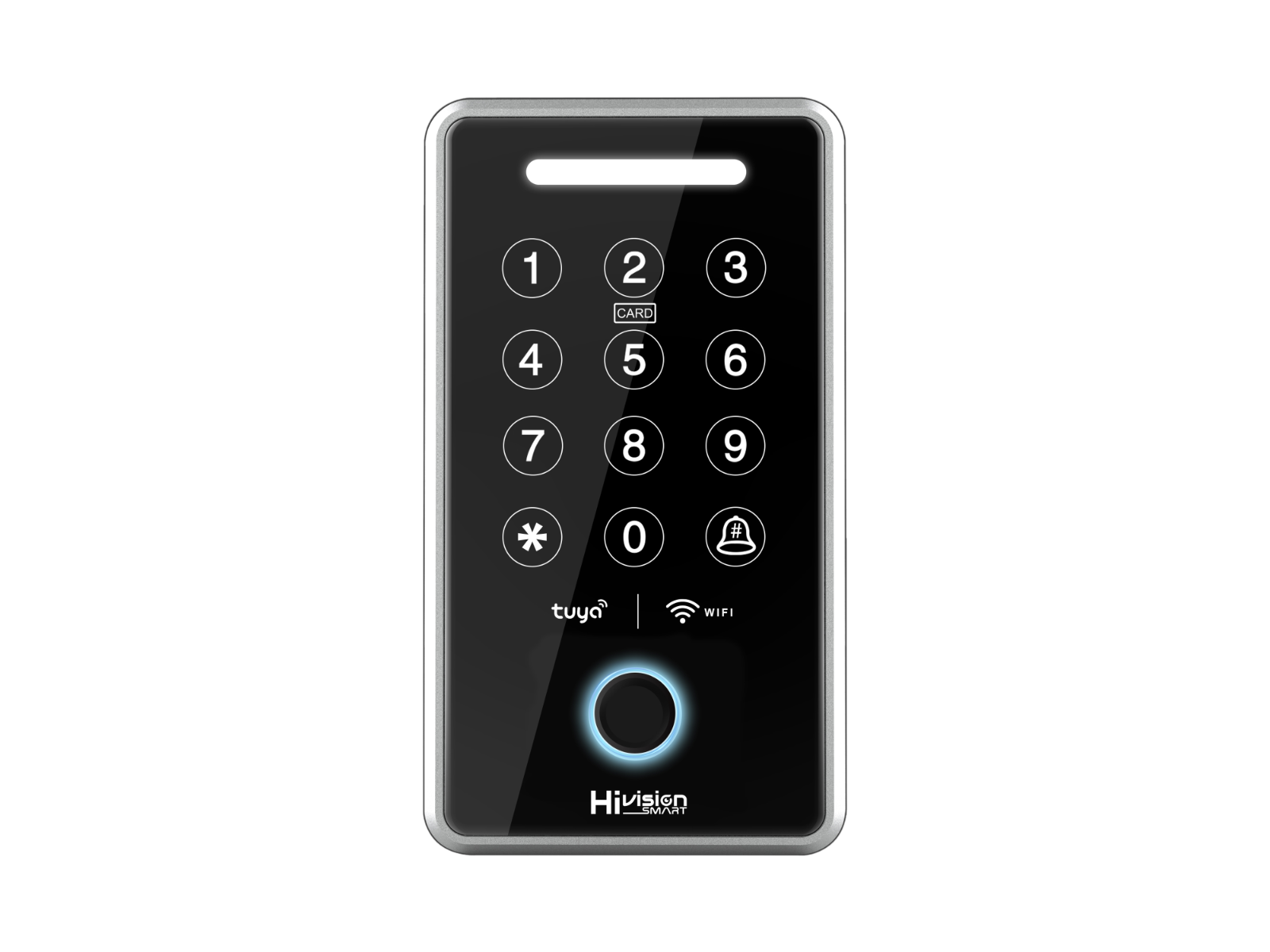

HS-A21 TY Access Control Device

The HS-A21 TY is an advanced access control device equipped with a capacitive fingerprint sensor (KFP112BA01, 7 pin), support for 13.56M IC cards, and a 12-button keypad for password entry. It includes input for an exit button and supports a door relay and audio output. The device operates on DC9V~12V (below 1A current) within a temperature range of -10℃ to +60℃ and humidity of 20% to 80%. It boasts a user capacity of 1000 (4M Flash) and a fingerprint capacity of 100. Identification modes include fingerprint, card, and password. Connectivity includes a 1.25mm pitch/2 pin speaker connector (-J5) for sound output and a 1.0mm pitch/7pin optical fingerprint sensor connector (-J4). An external connector (-J1) provides terminals for lock relay control (N.C, COM, N.O), PUSH output, EXIT input, Door Bell (+/-), GND, and 12V power supply.
