HS-A22 TY access control device

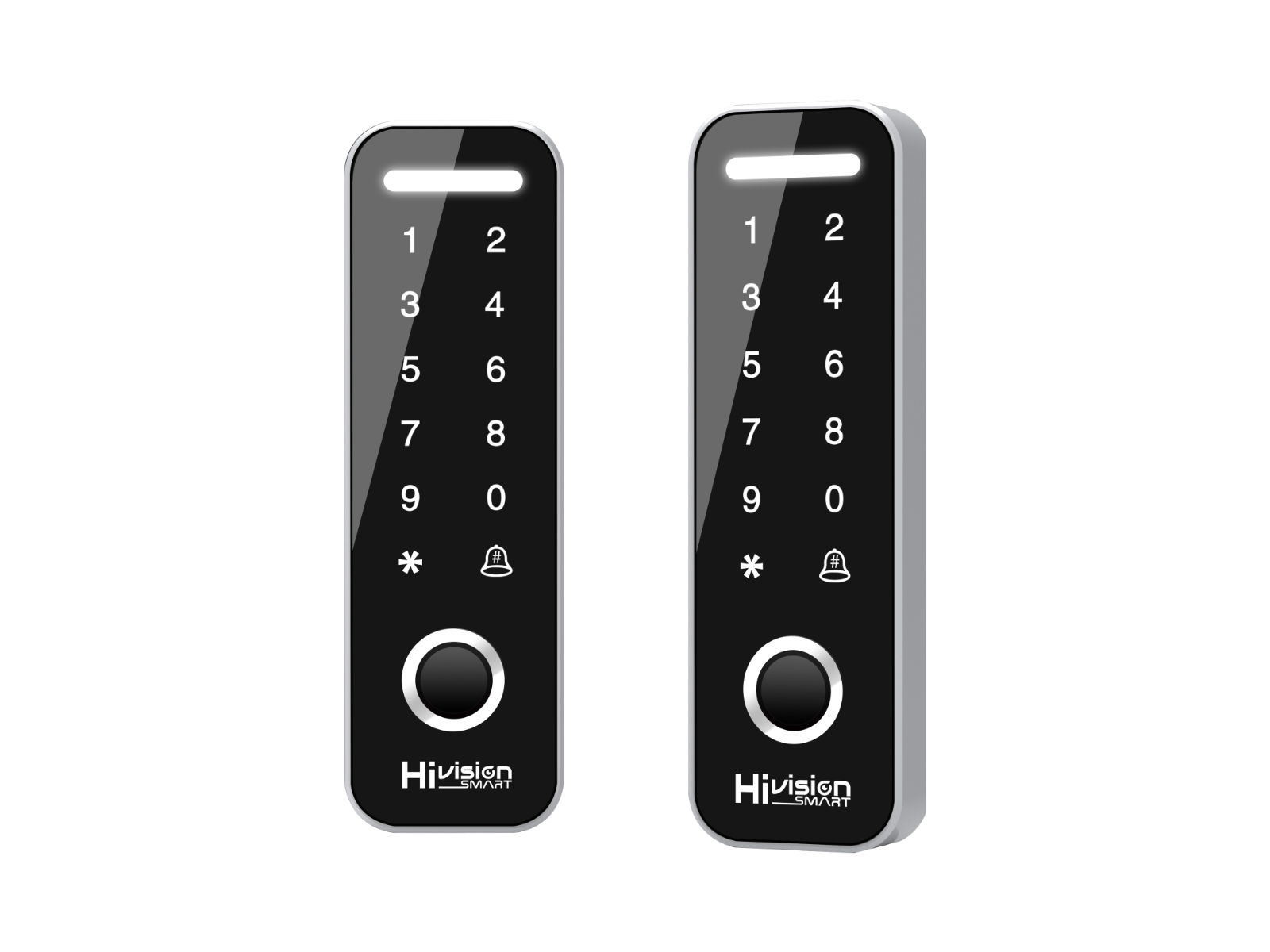

This is a Hivision HS-A22 TY access control device supporting multiple identification modes including capacitive fingerprint, 13.56M IC card, and password. It features a 12-key keyboard, exit button input, door relay, and audio output.
HS-A22 TY
The Hivision HS-A22 TY is a comprehensive access control system designed for security and convenience. It integrates a capacitive fingerprint sensor (7pin, KFP112BA01), supports 13.56M IC cards, and allows for password-based authentication via its 12-key keyboard. The device includes essential features such as exit button input, a door relay for lock control, and audio output for operational feedback. It operates on DC9V~12V power (below 1A current) within a temperature range of -10℃ to +60°C and humidity of 20% to 80% RH. It boasts a user capacity of 1000 (with 4M Flash) and a fingerprint capacity of 100. Connectivity options include a J5 speaker connector (1.25mm pitch/2 pin) for audio output (Sound1, Sound2) and a J4 fingerprint sensor connector (1.0mm pitch/7pin optical connector). The external connector J1 (2mm pitch/9pin) provides comprehensive interfaces: Lock relay N.C (normal close), Lock relay COM (common), Lock relay N.O (normal open) terminals for door control, PUSH output signal, Door Exit button input signal, Door Bell terminals (DBELL-, DBLL+), Ground (GND), and DC 12V power supply.
