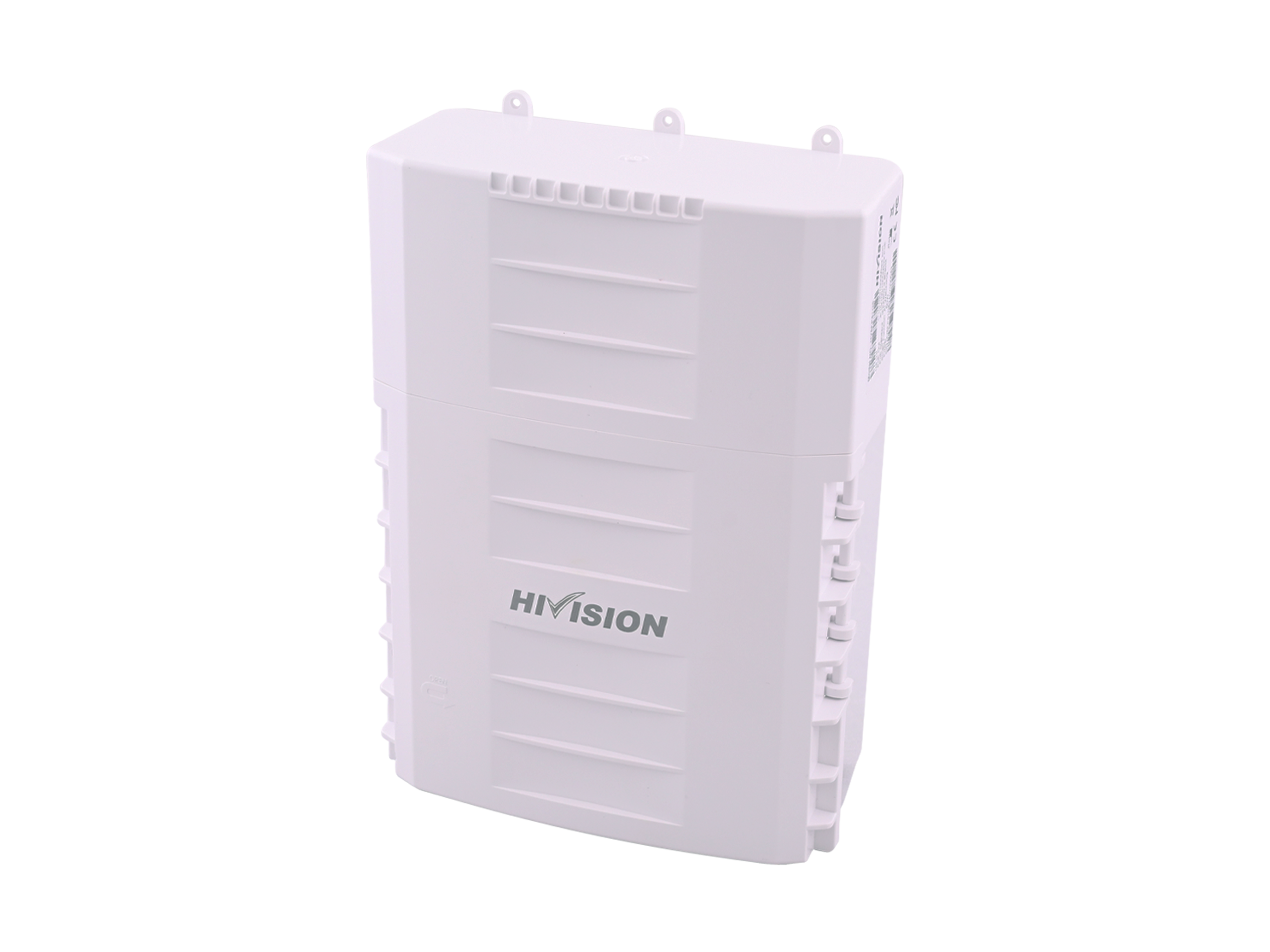

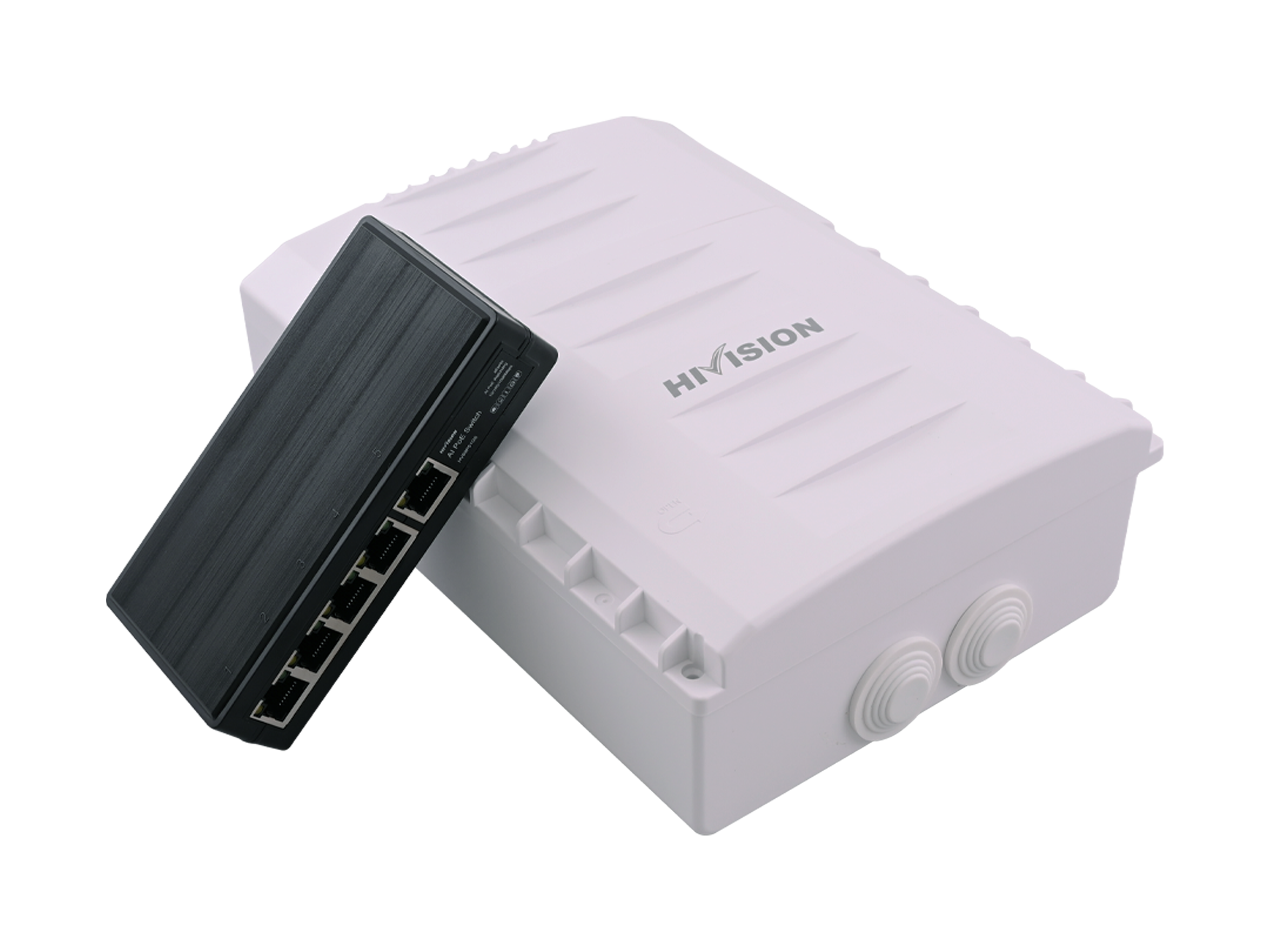

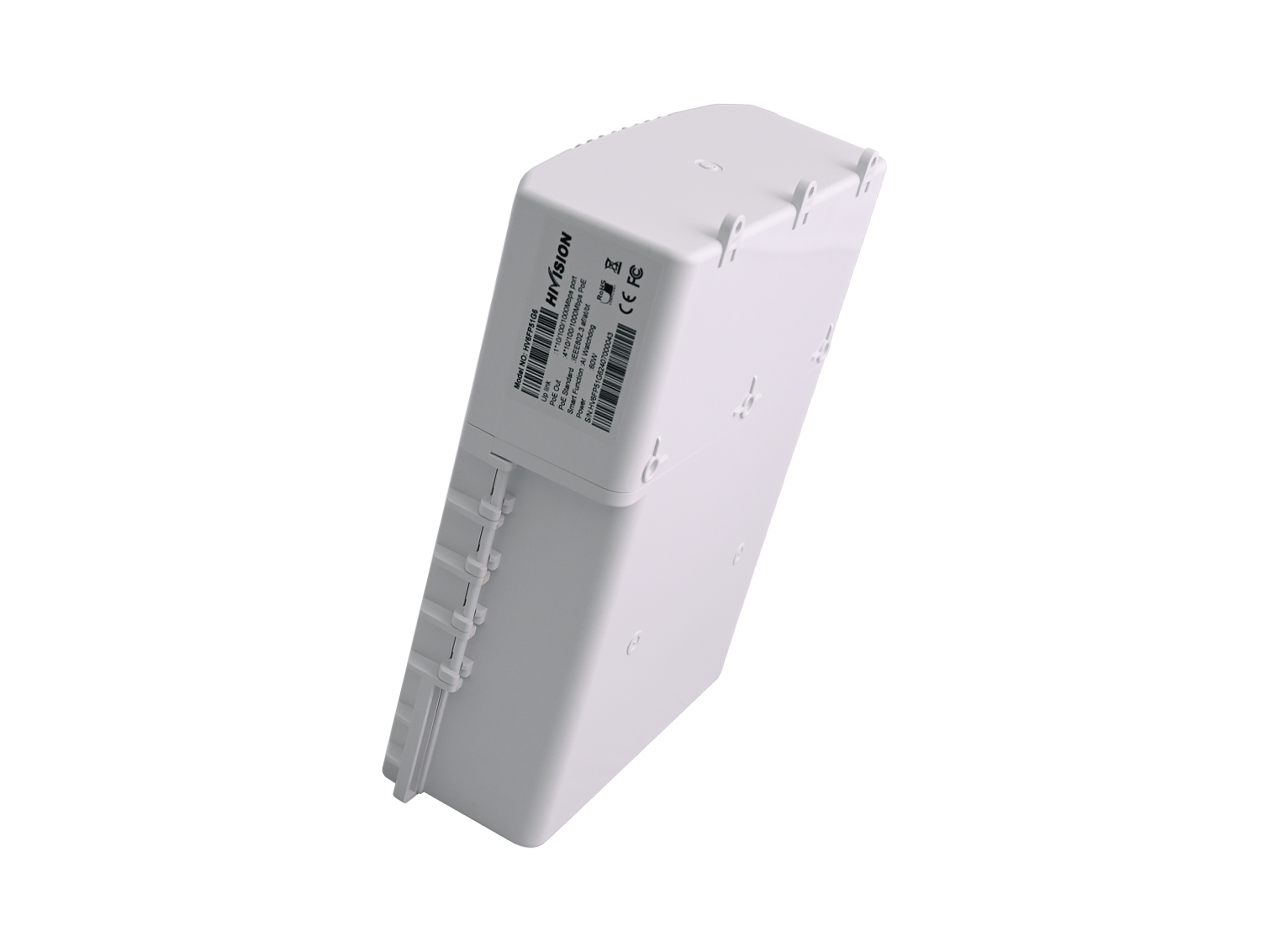

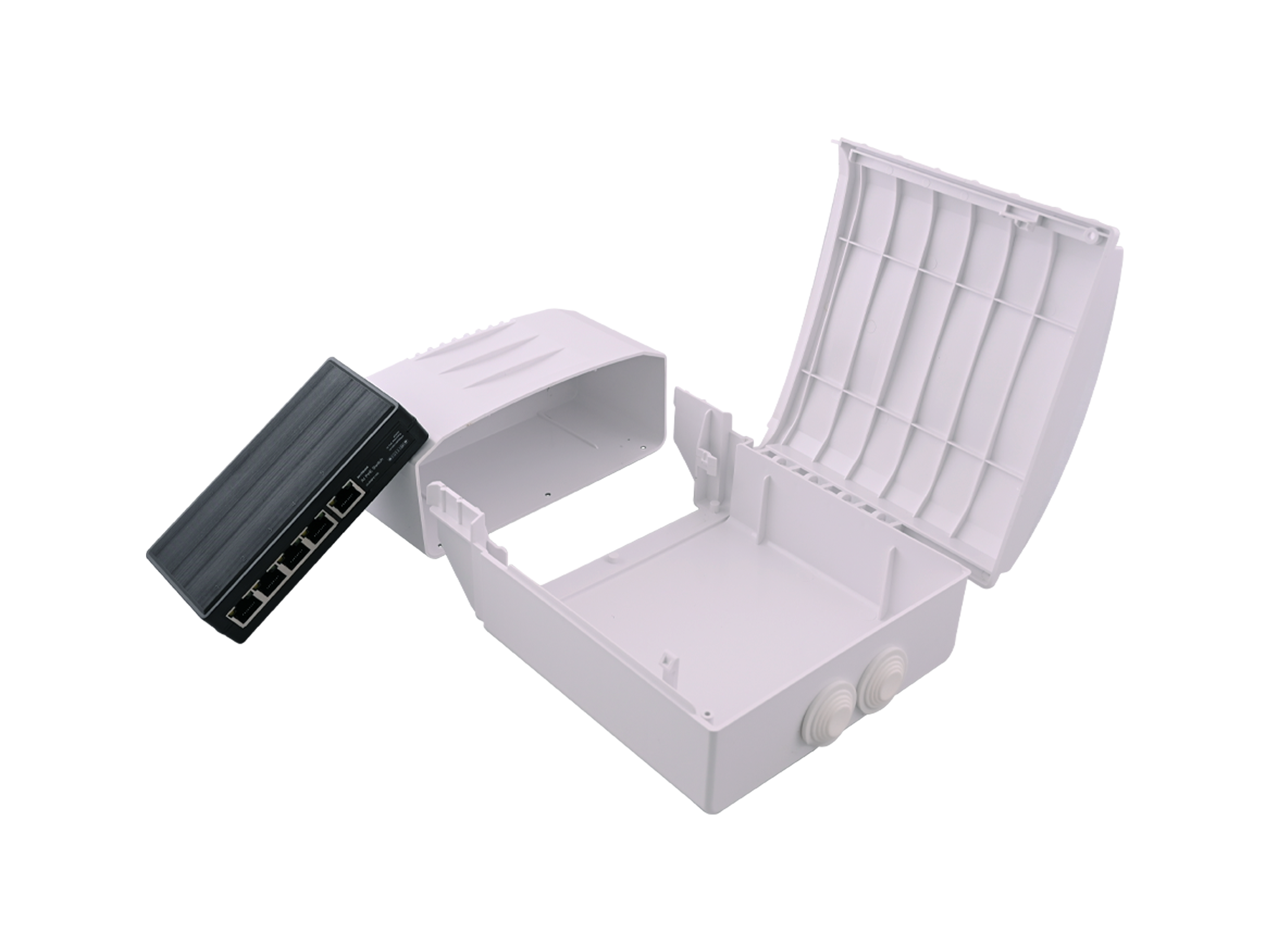

Gigabit PoE Extender Switch
Gigabit 4-port PoE extender switch with 60W high-power PoE support, AI watchdog function, 10Gbps bandwidth, lightning protection, and long-distance network expansion for surveillance and enterprise networking systems.
HV69P51G6 / HV6FP51G6
The HV69P51G6 / HV6FP51G6 Gigabit PoE Extender Switch is a high-performance network expansion solution designed for IP surveillance systems, enterprise networks, wireless access points, industrial networking, smart buildings, and professional PoE deployments. Combining Gigabit-speed data transmission with high-power PoE support, the device delivers reliable long-distance connectivity and power distribution for demanding network environments. The switch features 4 Gigabit PoE ports and 1 Gigabit uplink LAN port, supporting IEEE 802.3af/at/bt Power over Ethernet standards. Ports 1–3 provide up to 30W PoE output, while Port 4 supports up to 60W high-power bt PoE output, making the device suitable for powering PTZ cameras, WiFi 6 access points, video intercom systems, digital signage, and other high-power PoE devices. Designed for efficient long-distance deployment, the extender switch supports transmission distances up to 130 meters and allows cascading up to 2–4 times, enabling flexible network expansion across large commercial buildings, campuses, warehouses, and outdoor installations. With a powerful 10Gbps switching bandwidth and support for Gigabit full-duplex transmission, the HV69P51G6 / HV6FP51G6 ensures stable high-speed performance for HD video streaming, data-intensive applications, and enterprise networking requirements. The integrated AI Watchdog function continuously monitors connected PoE devices and automatically reboots unresponsive equipment on ports 1–4, reducing maintenance requirements and improving overall network reliability in surveillance and security systems. For enhanced electrical protection, the switch incorporates 6KV lightning protection compliant with IEC61000-4-5 standards and 8KV ESD protection compliant with IEC61000-4-2 standards, safeguarding connected devices against electrical surges and static discharge. Available in both indoor and outdoor versions, the device offers durable construction, compact design, and reliable operation in demanding environmental conditions, making it an ideal solution for professional PoE networking applications.
