PoE Extender

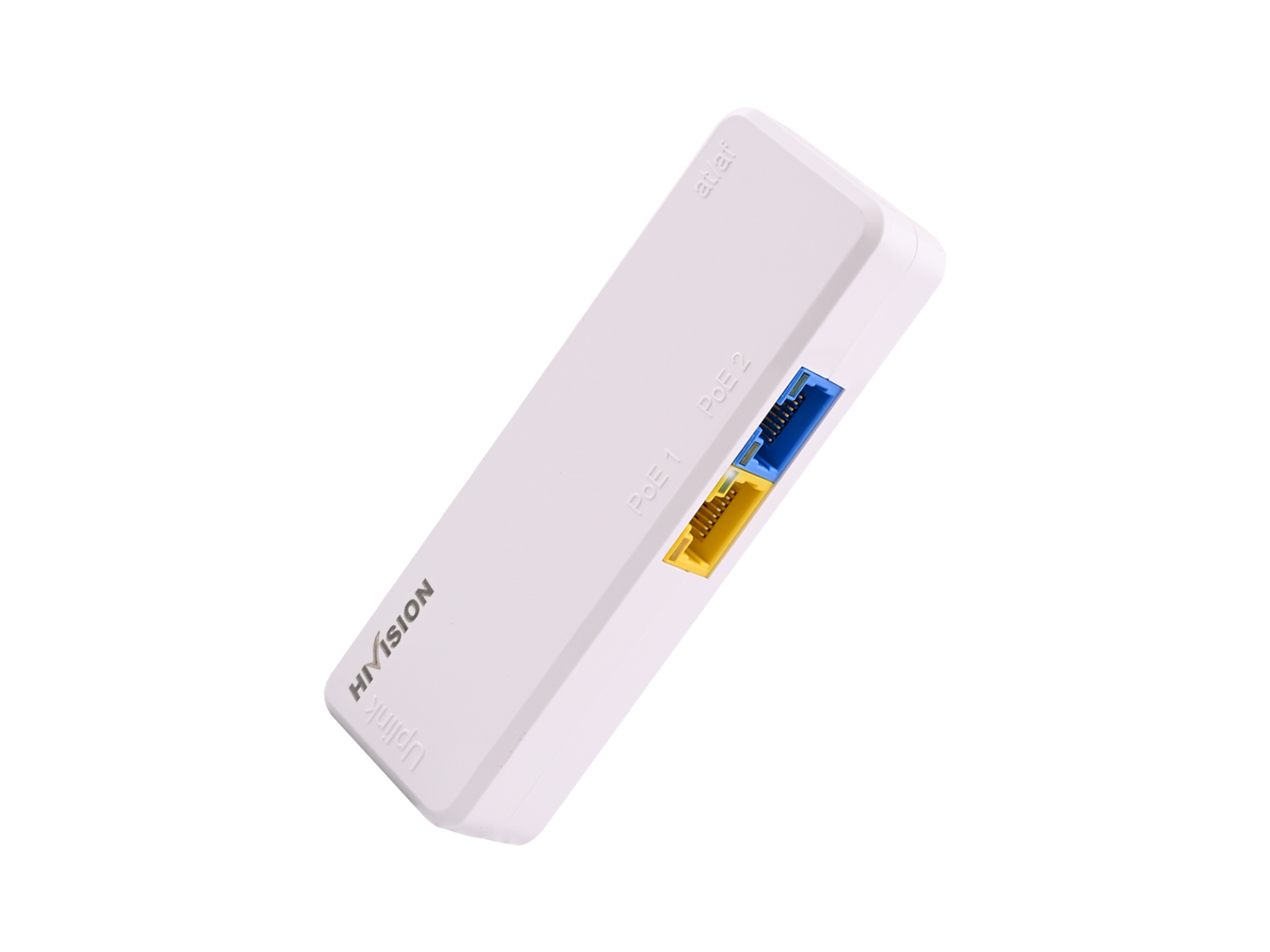

The HV69P31 / HV6FP31 PoE Extender is a compact and high-performance network extension solution designed for IP surveillance systems, PoE networking environments, smart security installations, wireless access points, VoIP systems, and industrial networking applications. Engineered for stable long-distance power and data transmission, the device enables flexible expansion of PoE networks without requiring additional power supplies. The extender features 2 PoE output ports and 1 uplink LAN port, supporting IEEE 802.3af/at/bt Power over Ethernet standards. One PoE port supports up to 30W output, while the second high-power PoE port supports up to 60W bt high-power output, making the device suitable for powering PTZ cameras, wireless access points, digital signage, and other high-power PoE devices. Designed for efficient network expansion, the HV69P31 / HV6FP31 supports transmission distances up to 130 meters and allows cascading up to 5 times, enabling extended network deployment across large facilities and outdoor environments. The integrated AI Watchdog function automatically detects and recovers malfunctioning PoE devices connected to ports 1 and 2, improving network reliability and minimizing system downtime in surveillance and security applications. For enhanced durability and protection, the extender incorporates 6KV lightning protection and 8KV ESD protection, safeguarding connected devices against electrical surges and environmental interference. Its compact lightweight design allows flexible indoor and outdoor installation depending on the selected model. With low latency data forwarding, stable network performance, and robust protection mechanisms, the HV69P31 / HV6FP31 provides a cost-effective and reliable solution for modern PoE network expansion requirements.
